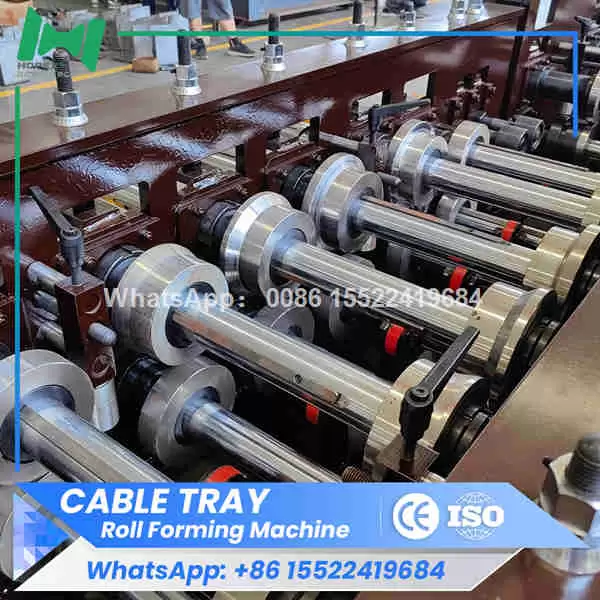

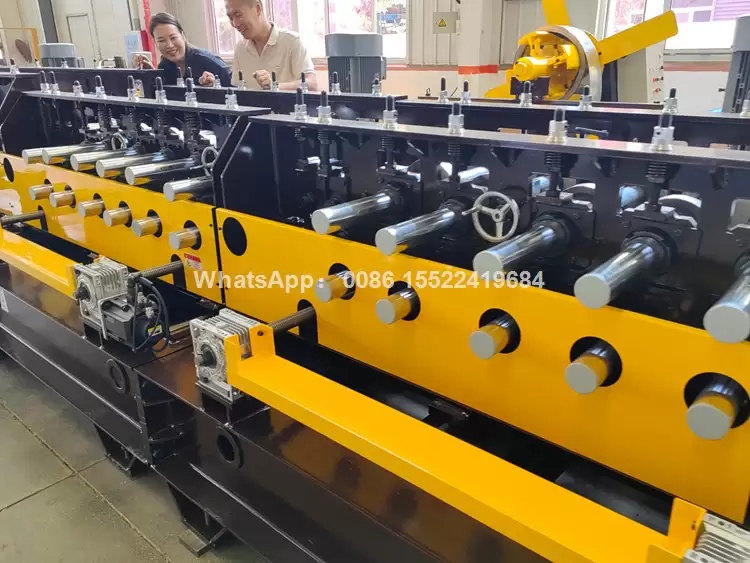

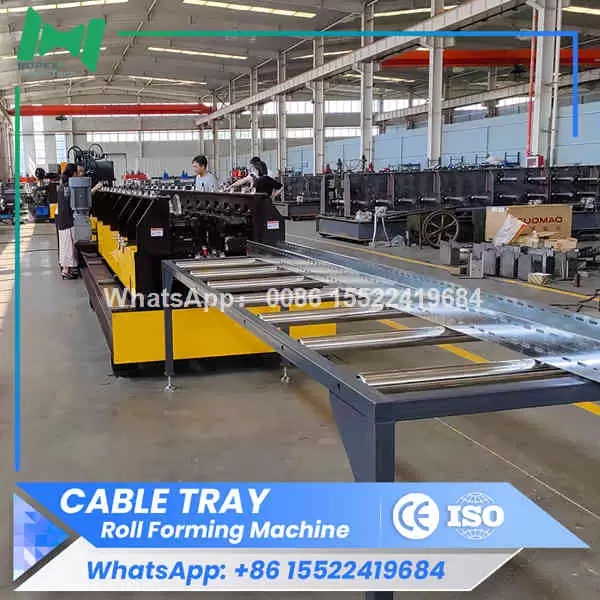

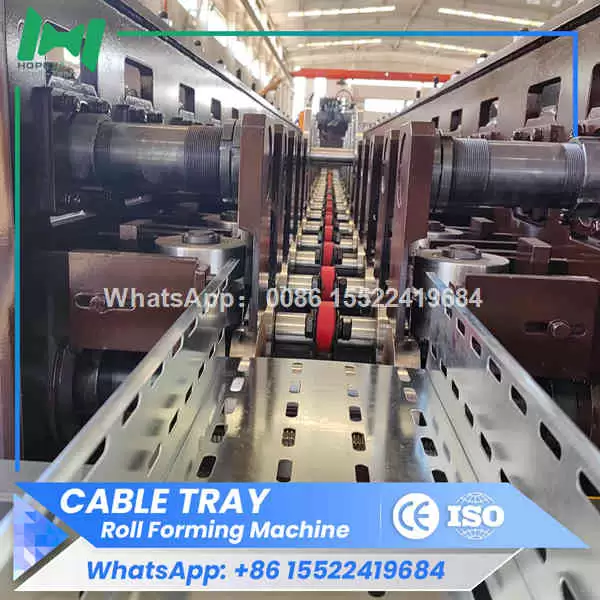

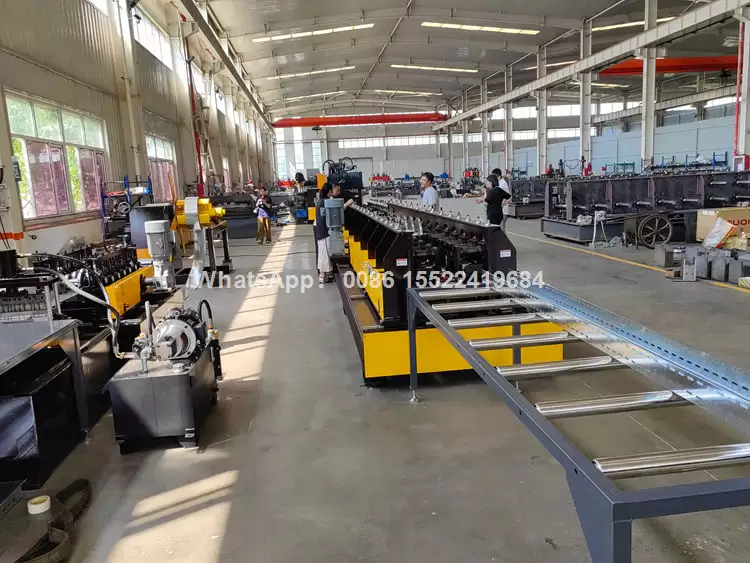

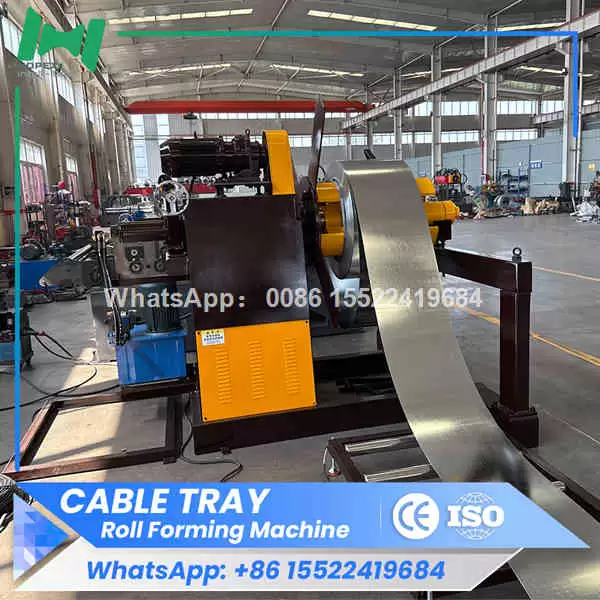

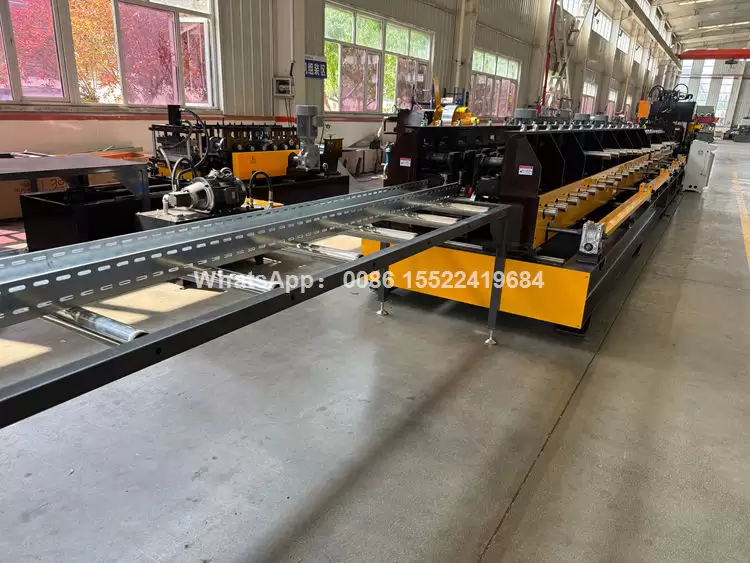

Cable Tray Roll Forming Machine for Trough Trays
The cable tray roll forming machine is a fully automated production line designed to manufacture trough-type cable trays for electrical wiring and cable management systems. This advanced equipment combines roll forming, punching, and cutting processes, delivering products with high precision and consistent quality.

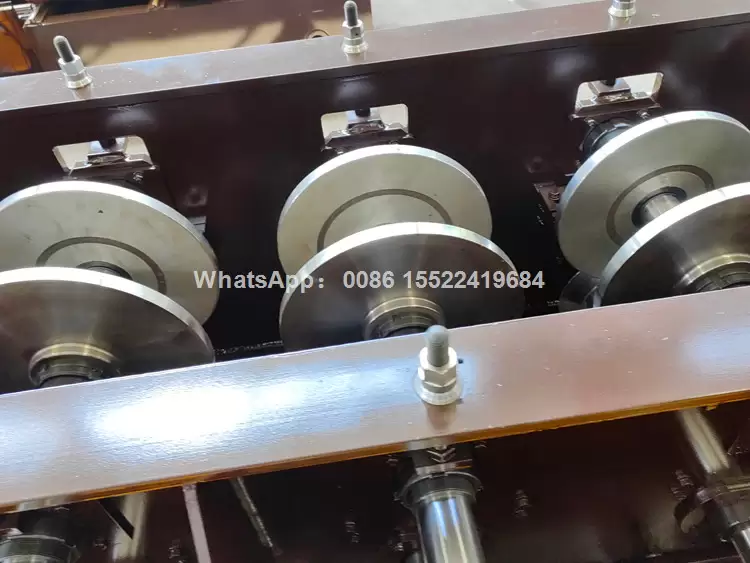

Built with durable steel rollers and equipped with PLC control, the machine ensures stable operation, long service life, and reduced labor requirements. It is capable of producing trough cable trays in multiple sizes, thicknesses, and designs, offering flexibility for different industrial and commercial projects.
Widely applied in factories, office buildings, power stations, and infrastructure construction, the cable tray roll forming machine improves efficiency and reduces costs. With customizable options, it provides manufacturers and contractors with a reliable solution for producing strong, corrosion-resistant, and high-performance cable tray systems.
Contact us for a quote on cable tray roll forming machine！
Cable Tray Roll Forming Machine for Trough Trays TFCHNICAL PARAMETEF
| Model parameters | 800/200 |
| Equipment footprint | 36*2.5*2(L*W*H)m |
| Rolling strip width | 200-1250mm |
| Rolling strip thickness | 0.5-2.5mm |
| Product specifications | 800/200-100/50 |
| Total installed capacity of equipment | About 60KW |
| Rolling strip material | Q235 cold-rolled strip steel,galvanized sheet |
| Online punching and production speed | 6-10 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Rolling workpiece length | 2000mm/3000mm |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
Contact us for a quote on cable tray roll forming machine！
